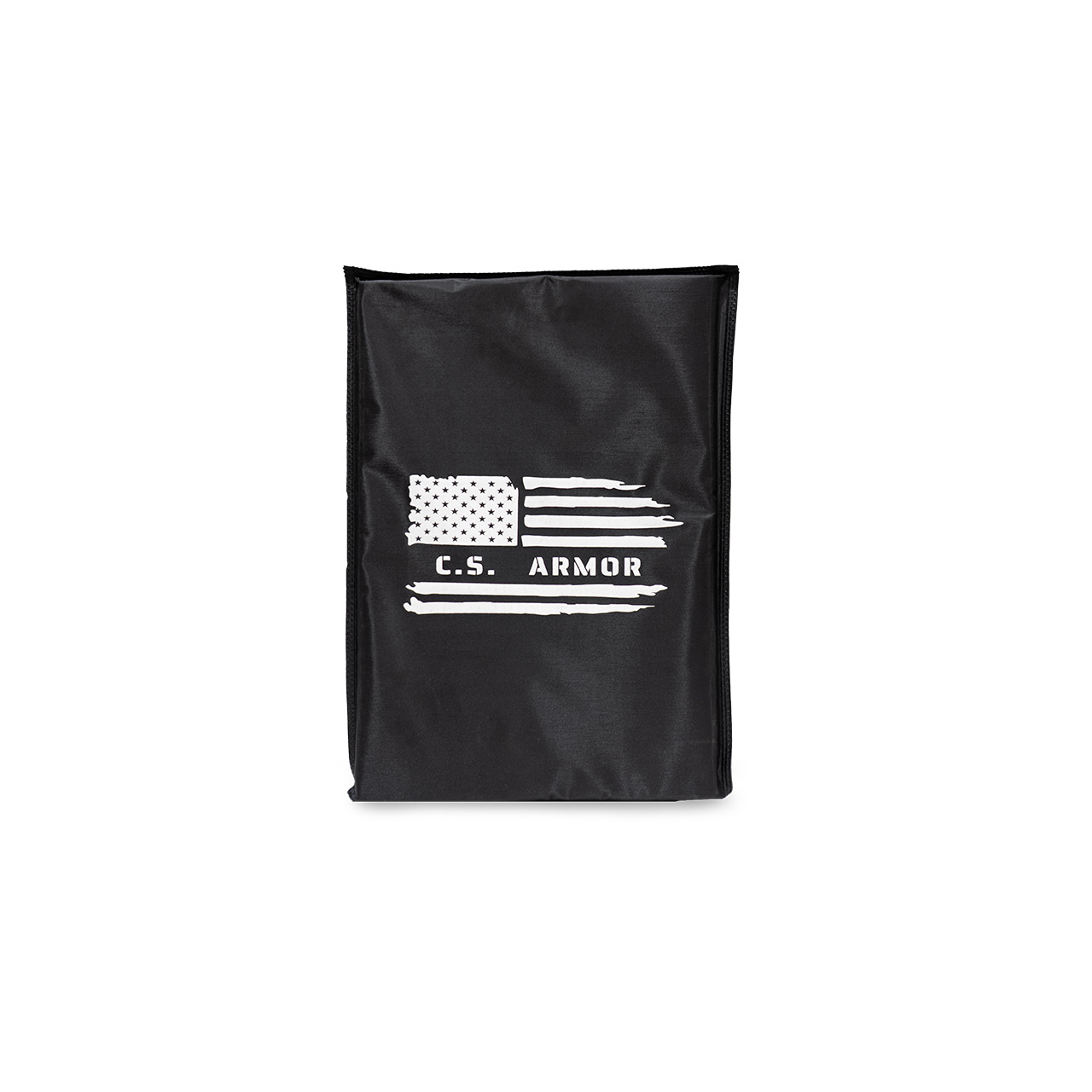

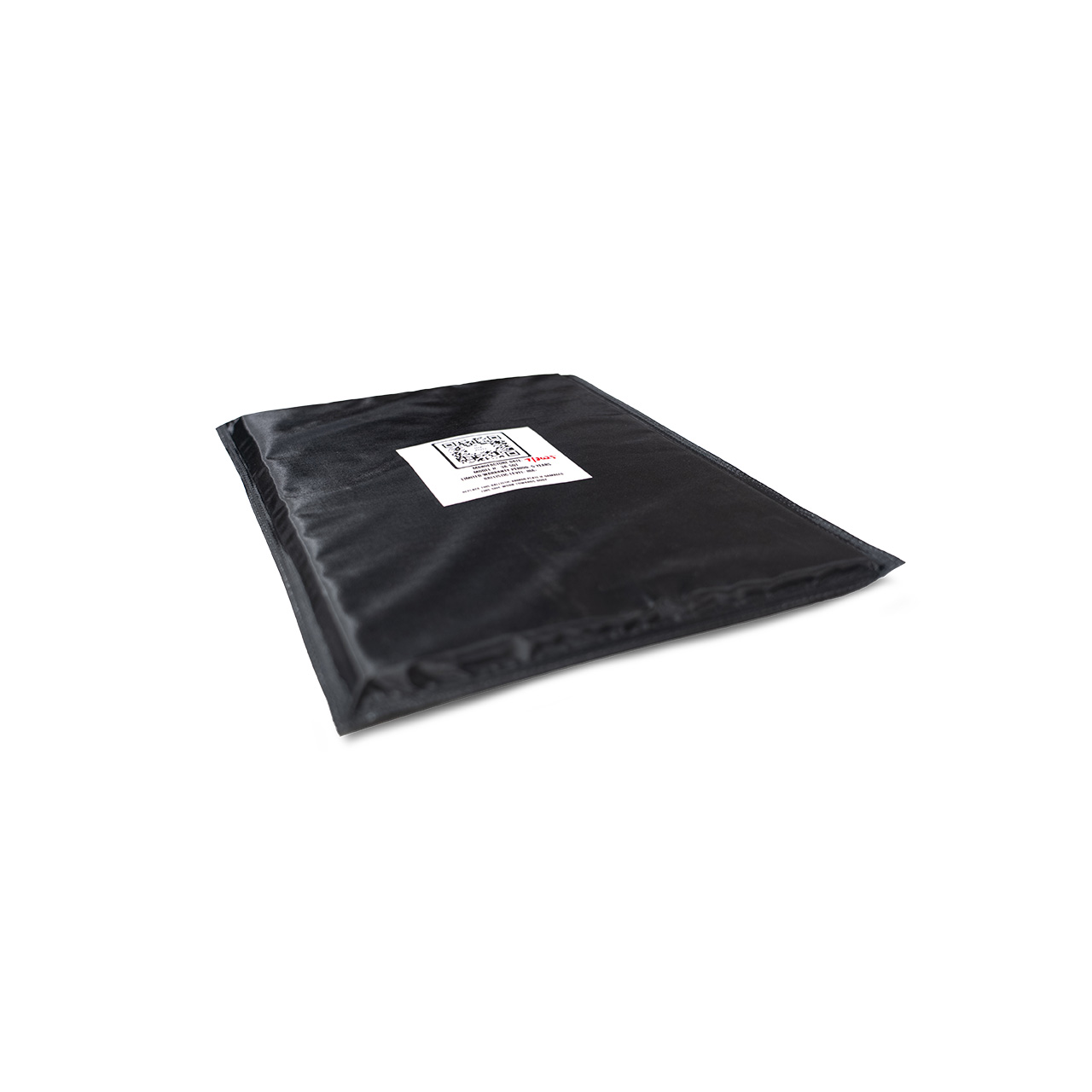

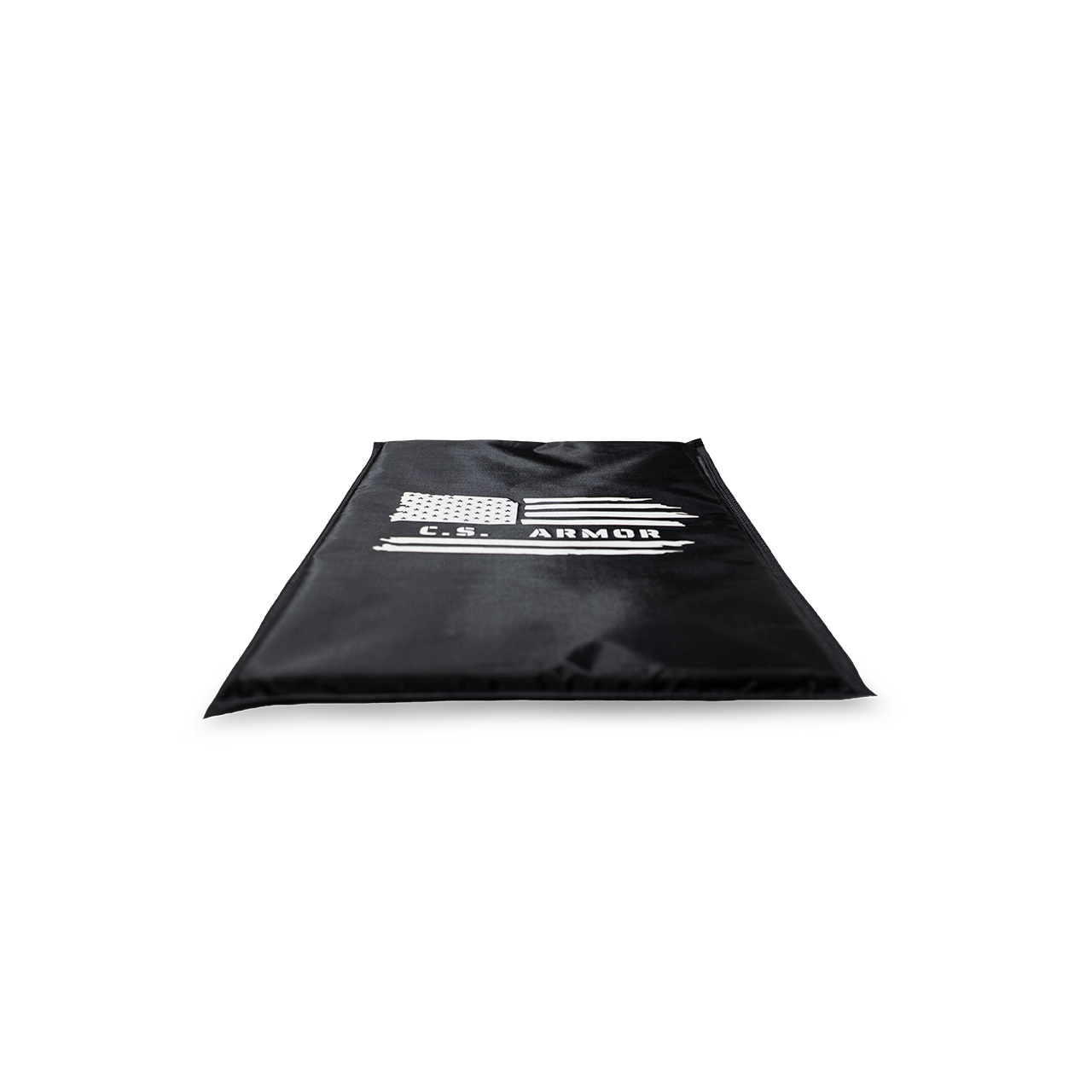

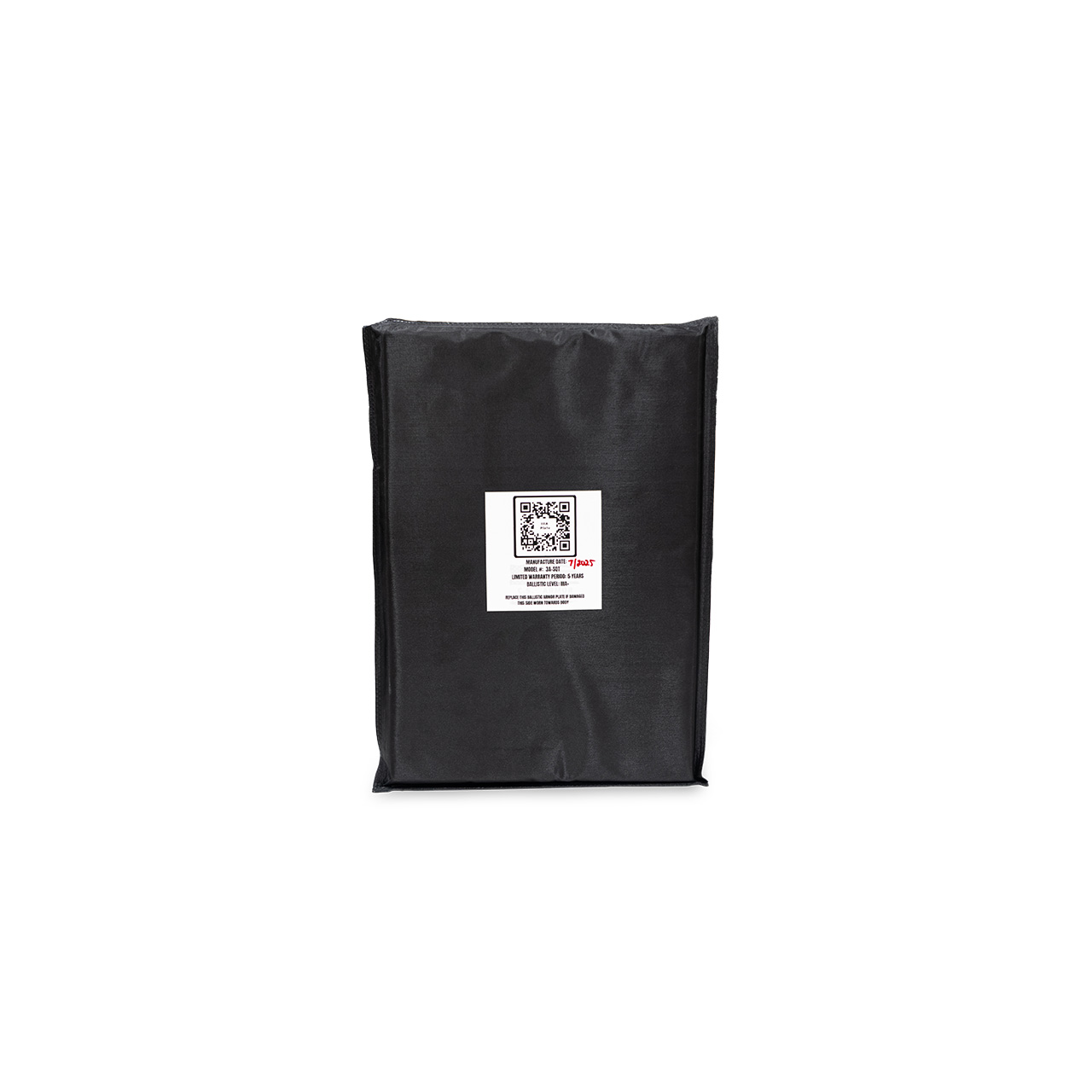

The ballistic panel insert is a Level IIIA 9″ x 13″ Soft Armor Panel designed to provide lightweight protection against common handgun threats, including .44 Magnum, 9mm, .357 Magnum, .45 ACP, .40 S&W, and .38 Special. This protective panel is multi-hit capable.

Ballistic Rating

• NIJ Level IIIA — tested to NIJ 0101.06 standards
• Stops .44 Magnum SJHP at 1,400 ft/s
• Stops .357 Magnum FMJ at 1,470 ft/s
• Protection against lesser handgun threats including .45 ACP, 9mm, .40 S&W, and .38 Special

Product Features

• Size: 9″ x 13″
• Rectangle Full Cut
• Thickness: 0.25″ (6.35 mm)
• Weight: Approx. 1.3–1.5 lbs

Material

• UHMWPE (Ultra-High Molecular Weight Polyethylene)
• Multi-layered high-density cross-ply composite
• Flexible and contourable
• No ceramic or metal components

Environmental Protection

• Water-resistant sealed outer cover constructed from nylon or TPU laminate
• UV-, sweat-, and mildew-resistant
• Operating temperature: -20°F to 140°F (-29°C to 60°C)

Service Life

• Manufacturer Warranty: 5 years
• Shelf Life: 5+ years with proper storage
